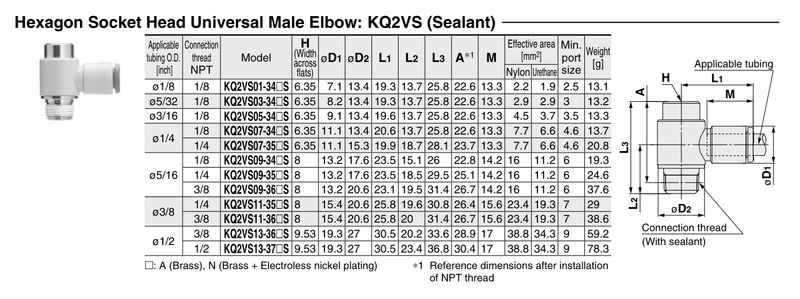

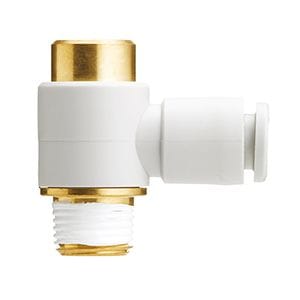

KQ2VS05-34AS SMC KQ2 One-Touch Fitting - Hexagon Socket Head Universal Male Elbow, 3/16 in OD Tube x 1/8 NPT Male

The SMC KQ2VS05-34AS is a KQ2 series hexagon socket head universal male elbow. It connects 3/16 in OD tubing to a 1/8 NPT male thread. Use to connect a tube to a female thread at a 90 degree angle, tightened with a hex key from above in a confined space.

Brass body. Thread sealant is pre-applied to the male thread. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
