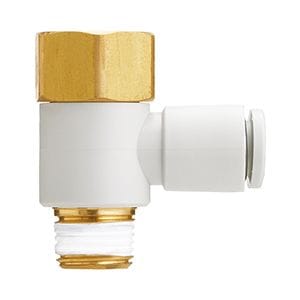

KQ2VF12-04NS SMC KQ2 One-Touch Fitting - Universal Female Elbow, 12 mm OD Tube x R1/2 Female

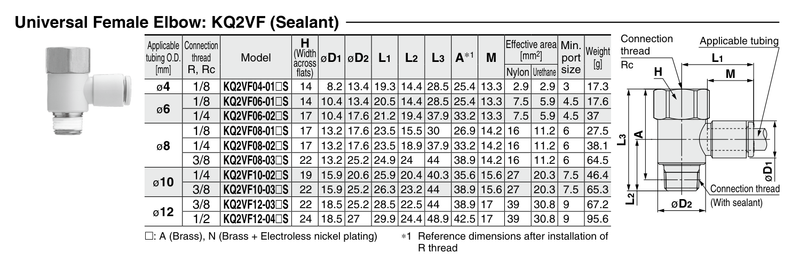

The SMC KQ2VF12-04NS is a KQ2 series universal female elbow. It connects 12 mm OD tubing to an R1/2 female thread. Use to connect a tube to a male thread at a 90 degree angle.

Nickel-plated brass body. Thread sealant is pre-applied to the male thread. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
