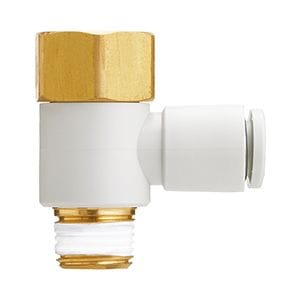

KQ2VF12-04AS SMC KQ2 One-Touch Fitting - Universal Female Elbow, 12 mm OD Tube x R1/2 Female

The SMC KQ2VF12-04AS is a KQ2 series universal female elbow. It connects 12 mm OD tubing to an R1/2 female thread. Use to connect a tube to a male thread at a 90 degree angle.

Brass body. Thread sealant is pre-applied to the male thread. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
