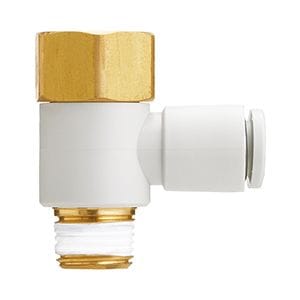

KQ2VF07-35AP SMC KQ2 One-Touch Fitting - Universal Female Elbow, 1/4 in OD Tube x 1/4 NPT Female

The SMC KQ2VF07-35AP is a KQ2 series universal female elbow. It connects 1/4 in OD tubing to a 1/4 NPT female thread. Use to connect a tube to a male thread at a 90 degree angle.

Brass body. Face seal type. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
