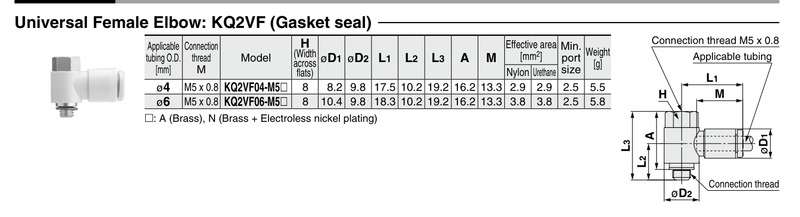

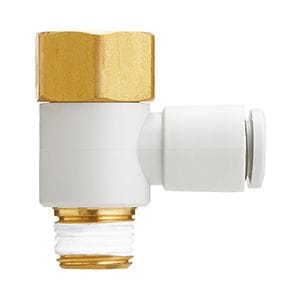

KQ2VF04-M5N SMC KQ2 One-Touch Fitting - Universal Female Elbow, 4 mm OD Tube x M5 Female

The SMC KQ2VF04-M5N is a KQ2 series universal female elbow. It connects 4 mm OD tubing to an M5 x 0.8 female thread. Use to connect a tube to a male thread at a 90 degree angle.

Nickel-plated brass body. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
