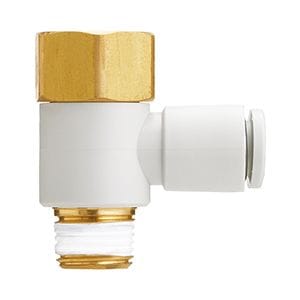

KQ2VF03-32N SMC KQ2 One-Touch Fitting - Universal Female Elbow, 5/32 in OD Tube x 10-32UNF Female

The SMC KQ2VF03-32N is a KQ2 series universal female elbow. It connects 5/32 in OD tubing to a 10-32UNF female thread. Use to connect a tube to a male thread at a 90 degree angle.

Nickel-plated brass body. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
