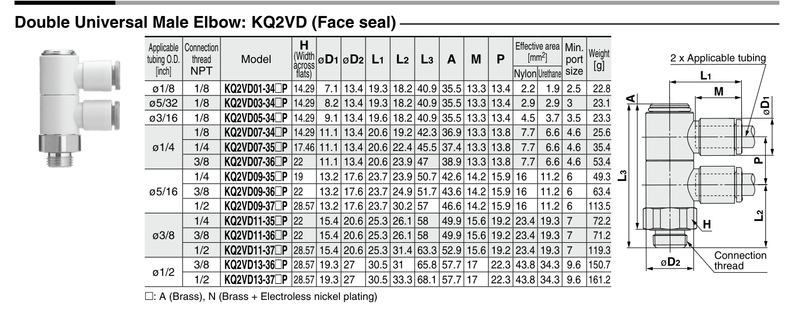

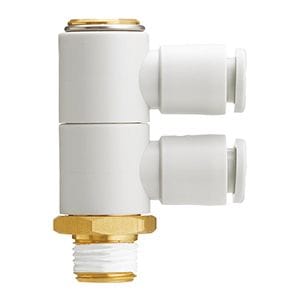

KQ2VD09-35NP SMC KQ2 One-Touch Fitting - Double Universal Male Elbow, 5/16 in OD Tube x 1/4 NPT Male

The SMC KQ2VD09-35NP is a KQ2 series double universal male elbow. It connects 5/16 in OD tubing to a 1/4 NPT male thread. Use to connect two tubes to one female thread at a 90 degree angle. Each outlet rotates independently for alignment.

Nickel-plated brass body. Face seal type. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
