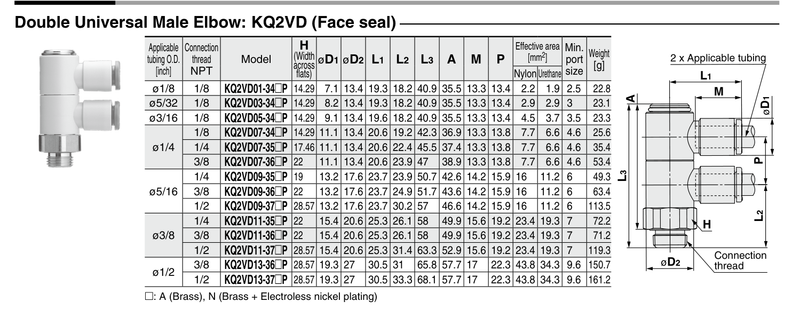

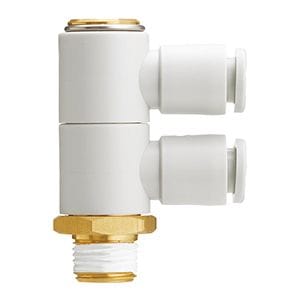

KQ2VD07-36AP SMC KQ2 One-Touch Fitting - Double Universal Male Elbow, 1/4 in OD Tube x 3/8 NPT Male

The SMC KQ2VD07-36AP is a KQ2 series double universal male elbow. It connects 1/4 in OD tubing to a 3/8 NPT male thread. Use to connect two tubes to one female thread at a 90 degree angle. Each outlet rotates independently for alignment.

Brass body. Face seal type. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
