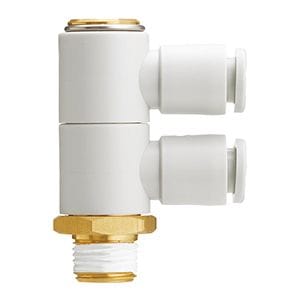

KQ2VD06-02AS-X12 SMC KQ2 One-Touch Fitting - Double Universal Male Elbow, 6 mm OD Tube x R1/4 Male

The SMC KQ2VD06-02AS-X12 is a KQ2 series double universal male elbow. It connects 6 mm OD tubing to an R1/4 male thread. Use to connect two tubes to one female thread at a 90 degree angle. Each outlet rotates independently for alignment.

Brass body. Thread sealant is pre-applied to the male thread. Round type release button. White vaseline lubricant with a white release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
