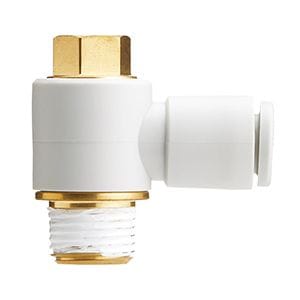

KQ2V16-G04N SMC KQ2 One-Touch Fitting - Universal Male Elbow, 16 mm OD Tube x G 1/2 Male

The SMC KQ2V16-G04N is a KQ2 series universal male elbow. It connects 16 mm OD tubing to a G 1/2 male thread. Use to connect a tube to a female thread at a 90 degree angle, with a hex body that can be tightened in a confined space.

Nickel-plated brass body. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
