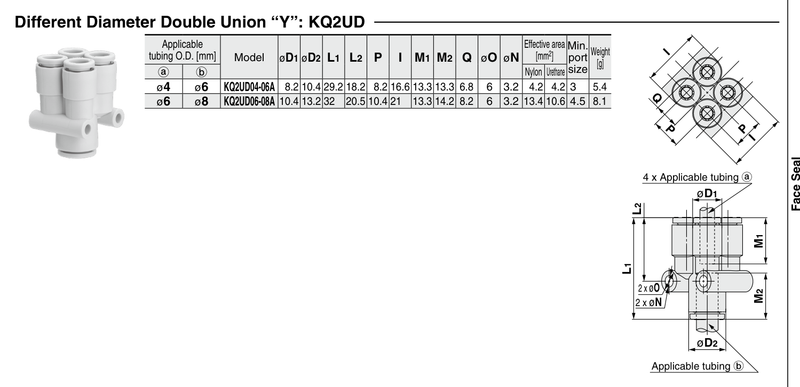

KQ2UD04-06A SMC KQ2 One-Touch Fitting - Different Diameter Double Union "Y", 4 mm to 6 mm OD Tube

The SMC KQ2UD04-06A is a KQ2 series different diameter double union "Y". It connects 4 mm OD tubing to 6 mm OD tubing. Use to join four tubes of reduced size, branching in the same direction.

Brass body. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
