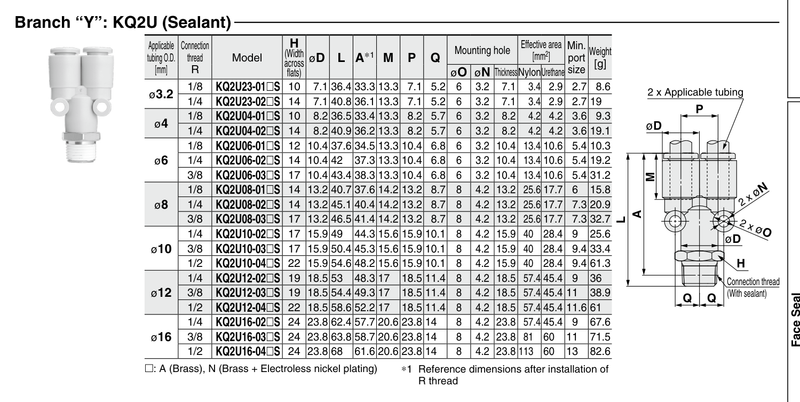

KQ2U23-01NS SMC KQ2 One-Touch Fitting - Branch "Y", 3.2 mm OD Tube x R1/8 Male

The SMC KQ2U23-01NS is a KQ2 series branch "Y". It connects 3.2 mm OD tubing to an R1/8 male thread. Use to connect two tubes to one female thread, with both tubes running in the same direction.

Nickel-plated brass body. Thread sealant is pre-applied to the male thread. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
