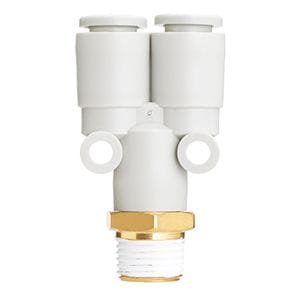

KQ2U12-04N SMC KQ2 One-Touch Fitting - Branch "Y", 12 mm OD Tube x R1/2 Male

The SMC KQ2U12-04N is a KQ2 series branch "Y". It connects 12 mm OD tubing to an R1/2 male thread. Use to connect two tubes to one female thread, with both tubes running in the same direction.

Nickel-plated brass body. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
