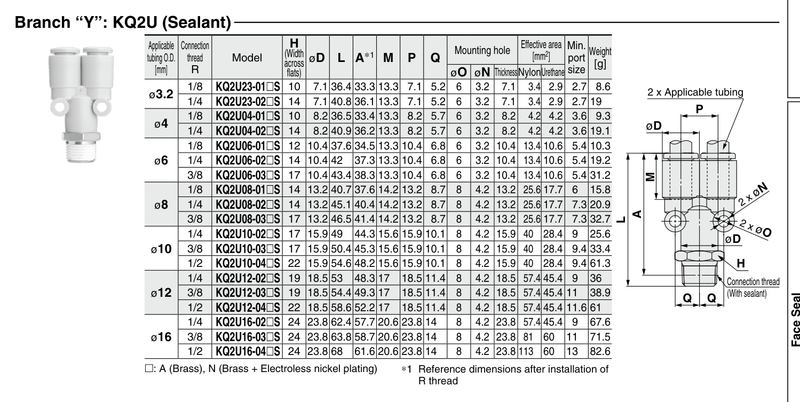

KQ2U10-04NS SMC KQ2 One-Touch Fitting - Branch "Y", 10 mm OD Tube x R1/2 Male

The SMC KQ2U10-04NS is a KQ2 series branch "Y". It connects 10 mm OD tubing to an R1/2 male thread. Use to connect two tubes to one female thread, with both tubes running in the same direction.

Nickel-plated brass body. Thread sealant is pre-applied to the male thread. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
