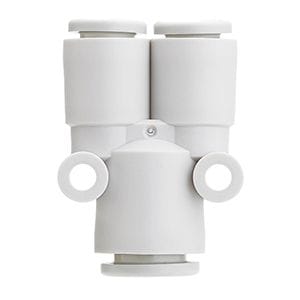

KQ2U08-10A-X35 SMC KQ2 One-Touch Fitting - Different Diameter "Y", 8 mm to 10 mm OD Tube

The SMC KQ2U08-10A-X35 is a KQ2 series different diameter "Y". It connects 8 mm OD tubing to 10 mm OD tubing. Use to join tubes of different sizes, with the reduced sizes branching in the same direction.

Brass body. Round type release button. Black body with a light gray release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
