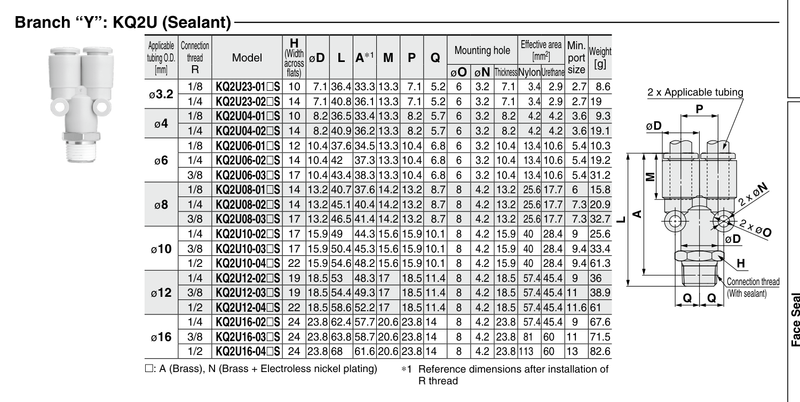

KQ2U08-03AS SMC KQ2 One-Touch Fitting - Branch "Y", 8 mm OD Tube x R3/8 Male

The SMC KQ2U08-03AS is a KQ2 series branch "Y". It connects 8 mm OD tubing to an R3/8 male thread. Use to connect two tubes to one female thread, with both tubes running in the same direction.

Brass body. Thread sealant is pre-applied to the male thread. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
