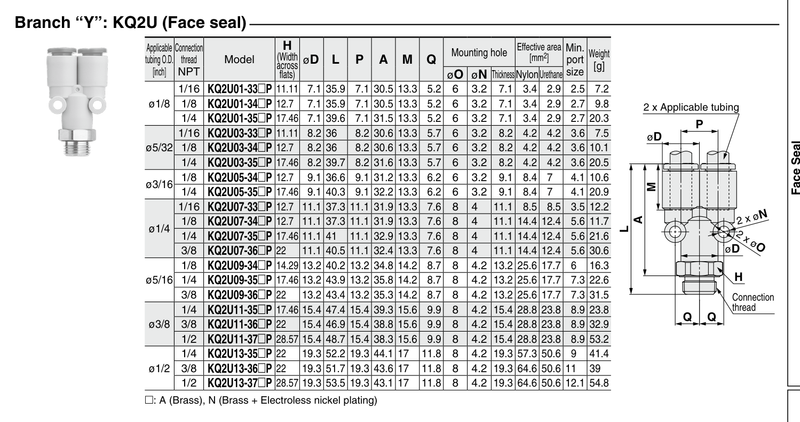

KQ2U07-36AP SMC KQ2 One-Touch Fitting - Branch "Y", 1/4 in OD Tube x 3/8 NPT Male

The SMC KQ2U07-36AP is a KQ2 series branch "Y". It connects 1/4 in OD tubing to a 3/8 NPT male thread. Use to connect two tubes to one female thread, with both tubes running in the same direction.

Brass body. Face seal type. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
