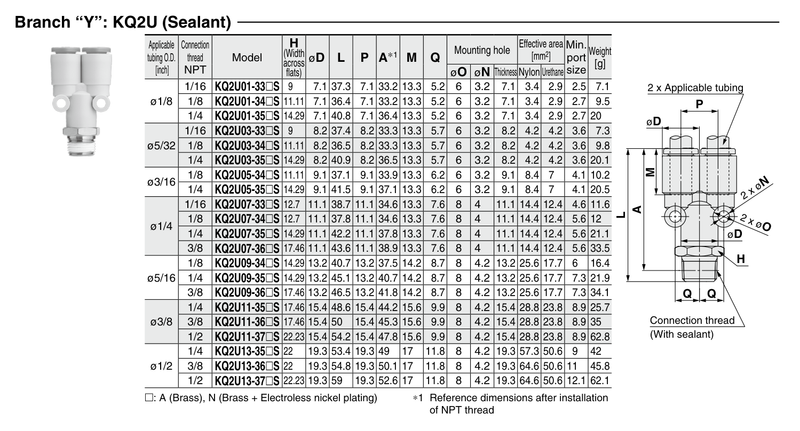

KQ2U07-33AS SMC KQ2 One-Touch Fitting - Branch "Y", 1/4 in OD Tube x 1/16 NPT Male

The SMC KQ2U07-33AS is a KQ2 series branch "Y". It connects 1/4 in OD tubing to a 1/16 NPT male thread. Use to connect two tubes to one female thread, with both tubes running in the same direction.

Brass body. Thread sealant is pre-applied to the male thread. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
