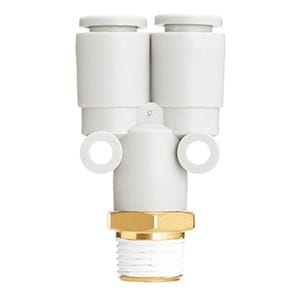

KQ2U07-32N SMC KQ2 One-Touch Fitting - Branch "Y", 1/4 in OD Tube x 10-32UNF Male

The SMC KQ2U07-32N is a KQ2 series branch "Y". It connects 1/4 in OD tubing to a 10-32UNF male thread. Use to connect two tubes to one female thread, with both tubes running in the same direction.

Nickel-plated brass body. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
