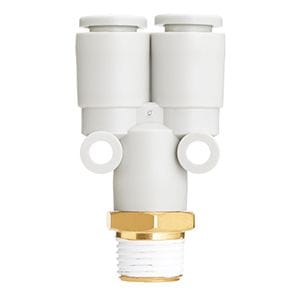

KQ2U06-03A SMC KQ2 One-Touch Fitting - Branch "Y", 6 mm OD Tube x R3/8 Male

The SMC KQ2U06-03A is a KQ2 series branch "Y". It connects 6 mm OD tubing to an R3/8 male thread. Use to connect two tubes to one female thread, with both tubes running in the same direction.

Brass body. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
