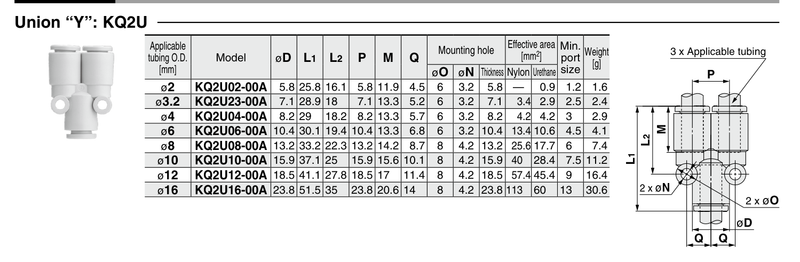

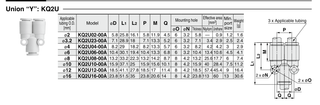

KQ2U06-00A-X35 SMC KQ2 One-Touch Fitting - Union "Y", 6 mm OD Tube

The SMC KQ2U06-00A-X35 is a KQ2 series union "Y". It connects 6 mm OD tubing. Use to join three tubes of the same size, with two branching in the same direction.

Brass body. Round type release button. Black body with a light gray release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
