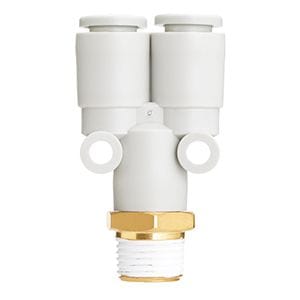

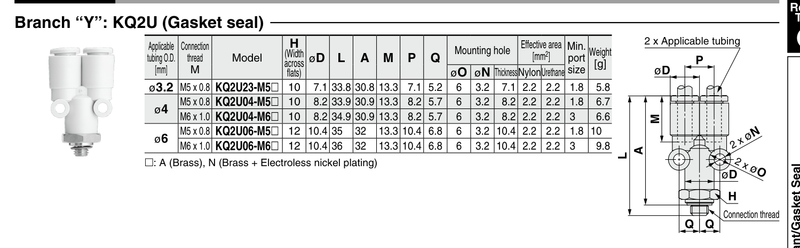

KQ2U04-M6A SMC KQ2 One-Touch Fitting - Branch "Y", 4 mm OD Tube x M6 Male

The SMC KQ2U04-M6A is a KQ2 series branch "Y". It connects 4 mm OD tubing to an M6 x 1.0 male thread. Use to connect two tubes to one female thread, with both tubes running in the same direction.

Brass body. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
