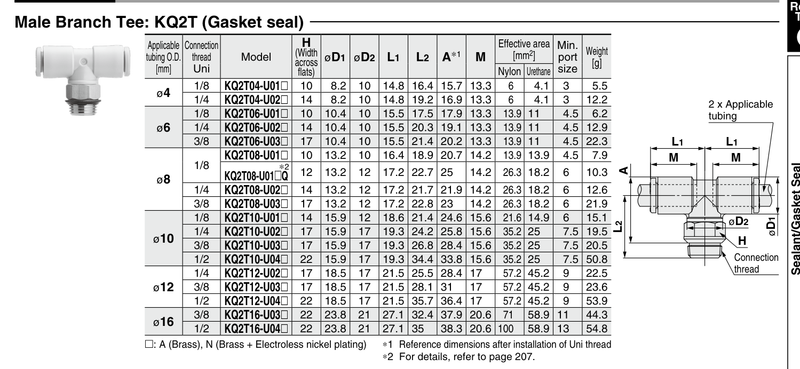

KQ2T10-U04N SMC KQ2 One-Touch Fitting - Male Branch Tee, 10 mm OD Tube x Uni 1/2 Male

The SMC KQ2T10-U04N is a KQ2 series male branch tee. It connects 10 mm OD tubing to a Uni 1/2 male thread. Use to connect two tubes to one female thread, with both tubes at 90 degrees to the thread.

The Uni thread installs into Rc, G, NPT and NPTF female ports, so one part covers all four. It seals on a captive gasket that seats against the chamfer at the mouth of the port rather than on the thread flanks, so the mating port must present a flat or chamfered face at the thread entry. No thread sealant is required. Replacement gaskets are ordered separately as KQG.

Nickel-plated brass body. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
