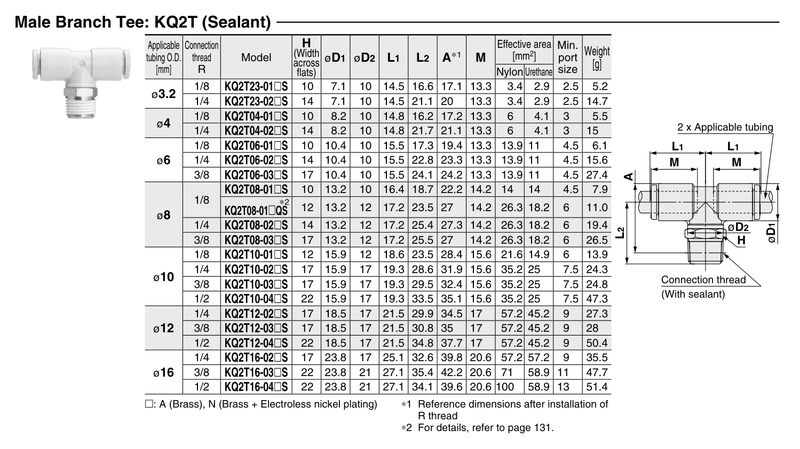

KQ2T10-01AS-X35 SMC KQ2 One-Touch Fitting - Male Branch Tee, 10 mm OD Tube x R1/8 Male

The SMC KQ2T10-01AS-X35 is a KQ2 series male branch tee. It connects 10 mm OD tubing to an R1/8 male thread. Use to connect two tubes to one female thread, with both tubes at 90 degrees to the thread.

Brass body. Thread sealant is pre-applied to the male thread. Round type release button. Black body with a light gray release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
