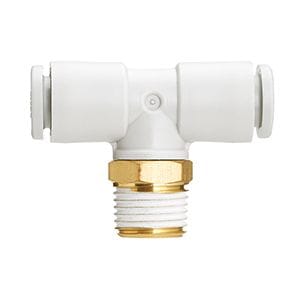

KQ2T08-01NS SMC KQ2 One-Touch Fitting - Male Branch Tee, 8 mm OD Tube x R1/8 Male

The SMC KQ2T08-01NS is a KQ2 series male branch tee. It connects 8 mm OD tubing to an R1/8 male thread. Use to connect two tubes to one female thread, with both tubes at 90 degrees to the thread.

Nickel-plated brass body. Thread sealant is pre-applied to the male thread. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
