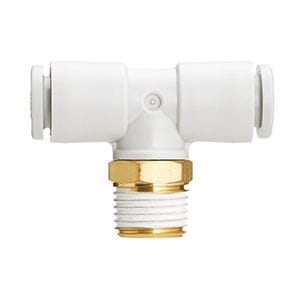

KQ2T07-34A SMC KQ2 One-Touch Fitting - Male Branch Tee, 1/4 in OD Tube x 1/8 NPT Male

The SMC KQ2T07-34A is a KQ2 series male branch tee. It connects 1/4 in OD tubing to a 1/8 NPT male thread. Use to connect two tubes to one female thread, with both tubes at 90 degrees to the thread.

Brass body. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
