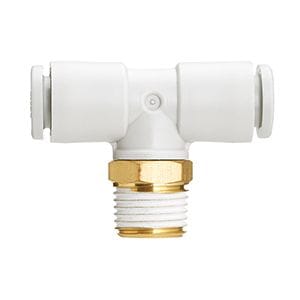

KQ2T06-M5N1 SMC KQ2 One-Touch Fitting - Male Branch Tee, 6 mm OD Tube x M5 Male

The SMC KQ2T06-M5N1 is a KQ2 series male branch tee. It connects 6 mm OD tubing to an M5 x 0.8 male thread. Use to connect two tubes to one female thread, with both tubes at 90 degrees to the thread.

Nickel-plated brass body. Oval type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
