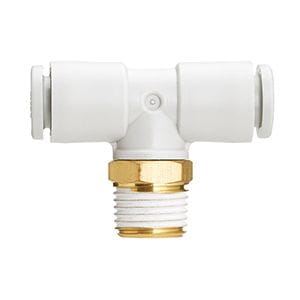

KQ2T06-G03A SMC KQ2 One-Touch Fitting - Male Branch Tee, 6 mm OD Tube x G 3/8 Male

The SMC KQ2T06-G03A is a KQ2 series male branch tee. It connects 6 mm OD tubing to a G 3/8 male thread. Use to connect two tubes to one female thread, with both tubes at 90 degrees to the thread.

Brass body. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
