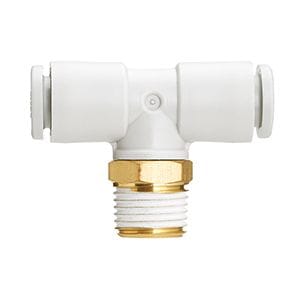

KQ2T06-01AP SMC KQ2 One-Touch Fitting - Male Branch Tee, 6 mm OD Tube x R1/8 Male

The SMC KQ2T06-01AP is a KQ2 series male branch tee. It connects 6 mm OD tubing to an R1/8 male thread. Use to connect two tubes to one female thread, with both tubes at 90 degrees to the thread.

Brass body. Face seal type. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
