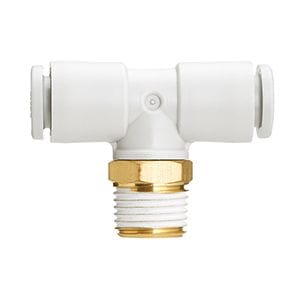

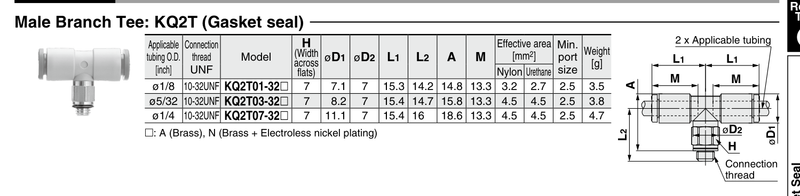

KQ2T03-32A SMC KQ2 One-Touch Fitting - Male Branch Tee, 5/32 in OD Tube x 10-32UNF Male

The SMC KQ2T03-32A is a KQ2 series male branch tee. It connects 5/32 in OD tubing to a 10-32UNF male thread. Use to connect two tubes to one female thread, with both tubes at 90 degrees to the thread.

Brass body. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
