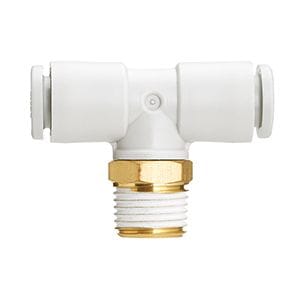

KQ2T02-M5A SMC KQ2 One-Touch Fitting - Male Branch Tee, 2 mm OD Tube x M5 Male

The SMC KQ2T02-M5A is a KQ2 series male branch tee. It connects 2 mm OD tubing to an M5 x 0.8 male thread. Use to connect two tubes to one female thread, with both tubes at 90 degrees to the thread.

Brass body. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
