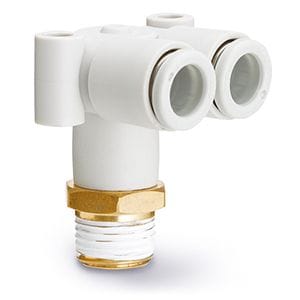

KQ2LU08-02AS SMC KQ2 One-Touch Fitting - Male Branch Connector, 8 mm OD Tube x R1/4 Male

The SMC KQ2LU08-02AS is a KQ2 series male branch connector. It connects 8 mm OD tubing to an R1/4 male thread. Use to connect two tubes to one female thread at a 90 degree angle.

Brass body. Thread sealant is pre-applied to the male thread. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
