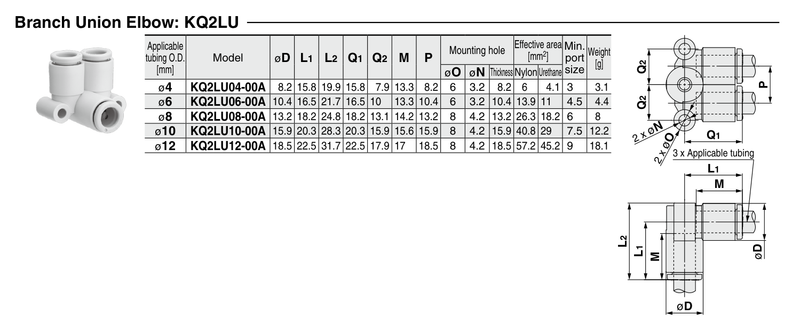

KQ2LU08-00A SMC KQ2 One-Touch Fitting - Branch Union Elbow, 8 mm OD Tube

The SMC KQ2LU08-00A is a KQ2 series branch union elbow. It connects 8 mm OD tubing. Use to join three tubes of the same size, with two branching at a 90 degree angle.

Brass body. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
