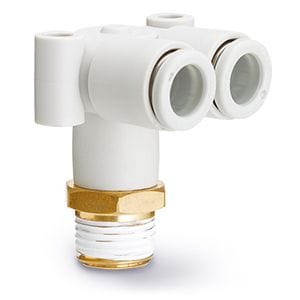

KQ2LU06-M6N SMC KQ2 One-Touch Fitting - Male Branch Connector, 6 mm OD Tube x M6 Male

The SMC KQ2LU06-M6N is a KQ2 series male branch connector. It connects 6 mm OD tubing to an M6 x 1.0 male thread. Use to connect two tubes to one female thread at a 90 degree angle.

Nickel-plated brass body. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
