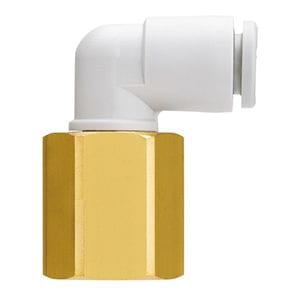

KQ2LF10-02N SMC KQ2 One-Touch Fitting - Female Elbow, 10 mm OD Tube x R1/4 Female

The SMC KQ2LF10-02N is a KQ2 series female elbow. It connects 10 mm OD tubing to an R1/4 female thread. Use to connect a tube to a male thread at a 90 degree angle.

Nickel-plated brass body. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
