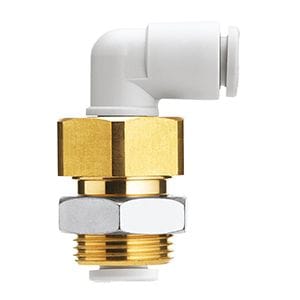

KQ2LE08-00N SMC KQ2 One-Touch Fitting - Bulkhead Male Elbow, 8 mm OD Tube

The SMC KQ2LE08-00N is a KQ2 series bulkhead male elbow. It connects 8 mm OD tubing to a threaded port. Use to pass a tube through a panel and turn it 90 degrees on the far side.

Nickel-plated brass body. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi). Mounting thread M16 x 1, for panel thickness up to 7 mm; requires a 17 mm mounting hole. Moulded with a locating rib.
