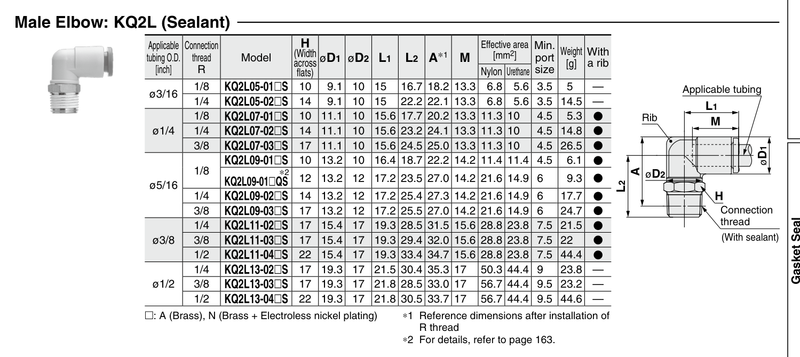

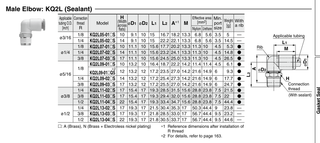

KQ2L13-04NS-X35 SMC KQ2 One-Touch Fitting - Male Elbow, 1/2 in OD Tube x R1/2 Male

The SMC KQ2L13-04NS-X35 is a KQ2 series male elbow. It connects 1/2 in OD tubing to an R1/2 male thread. Use to connect a tube to a female thread at a 90 degree angle.

Nickel-plated brass body. Thread sealant is pre-applied to the male thread. Round type release button. Black body with a light gray release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
