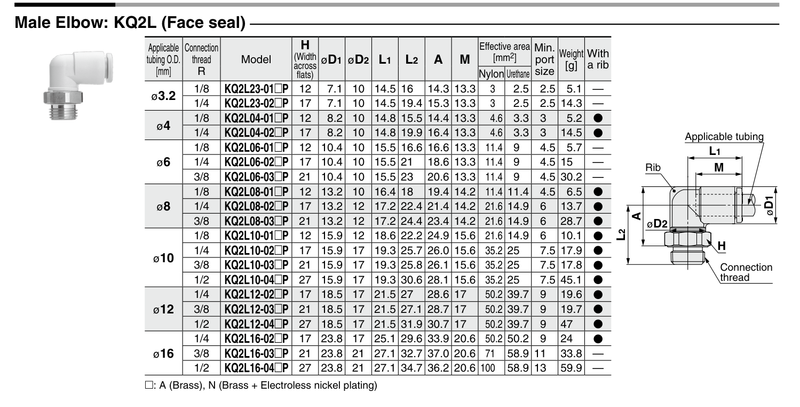

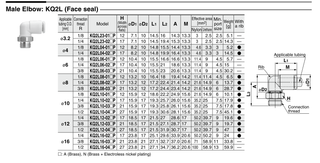

KQ2L12-02NP SMC KQ2 One-Touch Fitting - Male Elbow, 12 mm OD Tube x R1/4 Male

The SMC KQ2L12-02NP is a KQ2 series male elbow. It connects 12 mm OD tubing to an R1/4 male thread. Use to connect a tube to a female thread at a 90 degree angle.

Nickel-plated brass body. Face seal type. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
