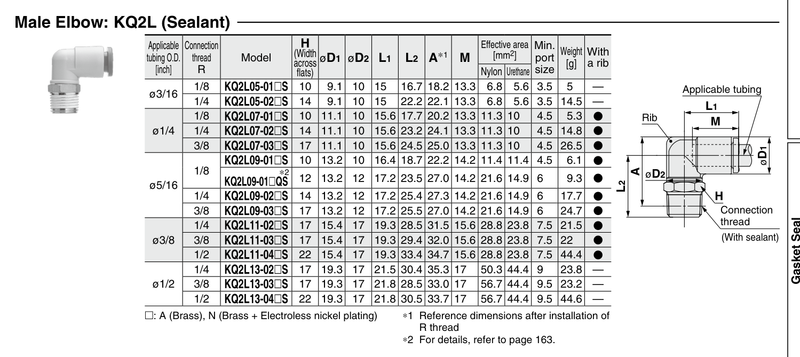

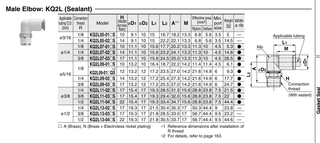

KQ2L11-04AS SMC KQ2 One-Touch Fitting - Male Elbow, 3/8 in OD Tube x R1/2 Male

The SMC KQ2L11-04AS is a KQ2 series male elbow. It connects 3/8 in OD tubing to an R1/2 male thread. Use to connect a tube to a female thread at a 90 degree angle.

Brass body. Thread sealant is pre-applied to the male thread. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
