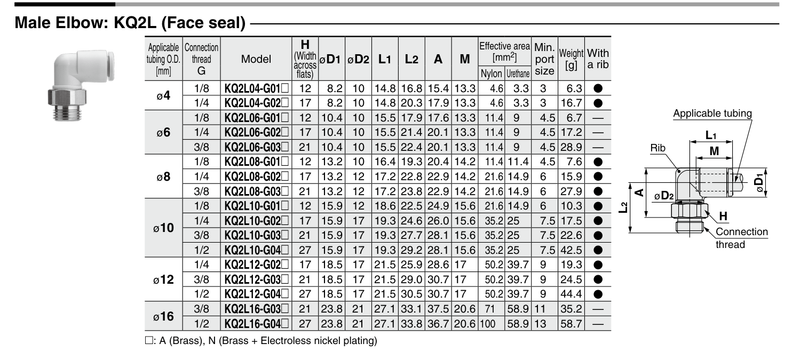

KQ2L10-G03A SMC KQ2 One-Touch Fitting - Male Elbow, 10 mm OD Tube x G 3/8 Male

The SMC KQ2L10-G03A is a KQ2 series male elbow. It connects 10 mm OD tubing to a G 3/8 male thread. Use to connect a tube to a female thread at a 90 degree angle.

Brass body. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
