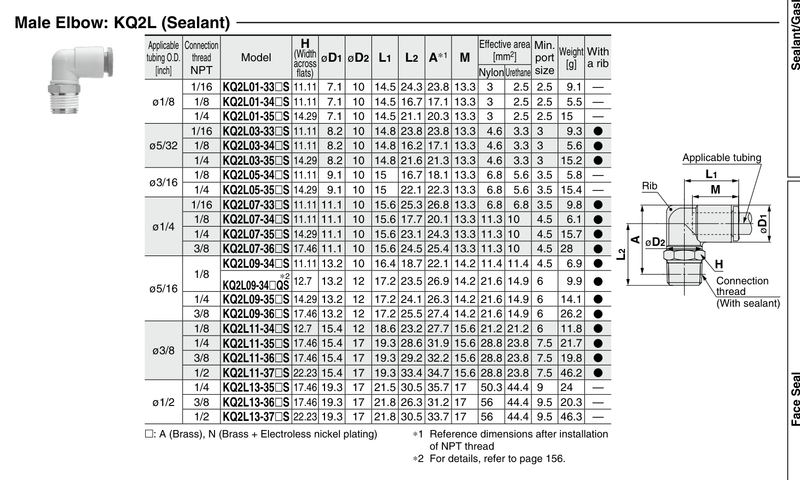

KQ2L09-34AS SMC KQ2 One-Touch Fitting - Male Elbow, 5/16 in OD Tube x 1/8 NPT Male

The SMC KQ2L09-34AS is a KQ2 series male elbow. It connects 5/16 in OD tubing to a 1/8 NPT male thread. Use to connect a tube to a female thread at a 90 degree angle.

Brass body. Thread sealant is pre-applied to the male thread. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
