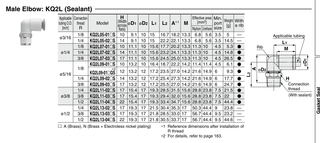

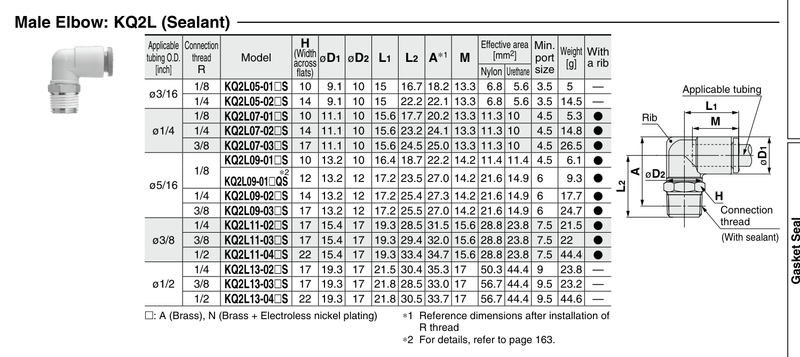

KQ2L07-01AS-X12 SMC KQ2 One-Touch Fitting - Male Elbow, 1/4 in OD Tube x R1/8 Male

The SMC KQ2L07-01AS-X12 is a KQ2 series male elbow. It connects 1/4 in OD tubing to an R1/8 male thread. Use to connect a tube to a female thread at a 90 degree angle.

Brass body. Thread sealant is pre-applied to the male thread. Round type release button. White vaseline lubricant with a white release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
