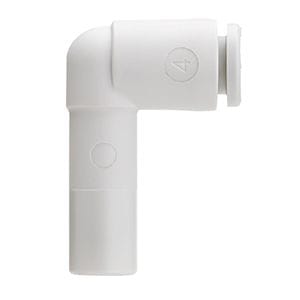

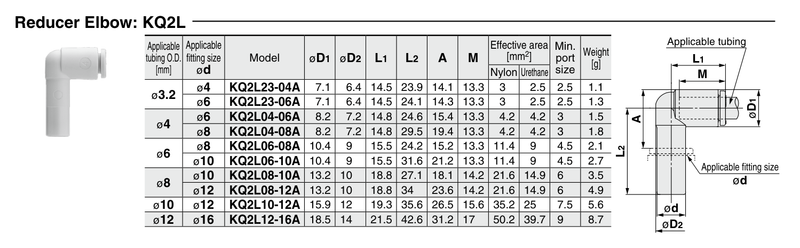

KQ2L06-08A SMC KQ2 One-Touch Fitting - Reducer Elbow, 6 mm to 8 mm OD Tube

The SMC KQ2L06-08A is a KQ2 series reducer elbow. It connects 6 mm OD tubing to 8 mm OD tubing. Use to join two tubes of different sizes at a 90 degree angle.

Brass body. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
