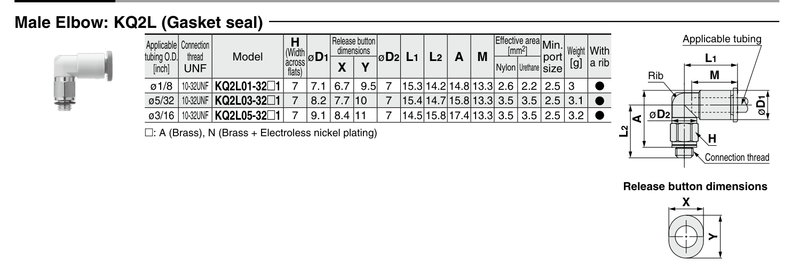

KQ2L03-32A1 SMC KQ2 One-Touch Fitting - Male Elbow, 5/32 in OD Tube x 10-32UNF Male

The SMC KQ2L03-32A1 is a KQ2 series male elbow. It connects 5/32 in OD tubing to a 10-32UNF male thread. Use to connect a tube to a female thread at a 90 degree angle.

Brass body. Oval type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
