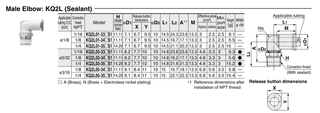

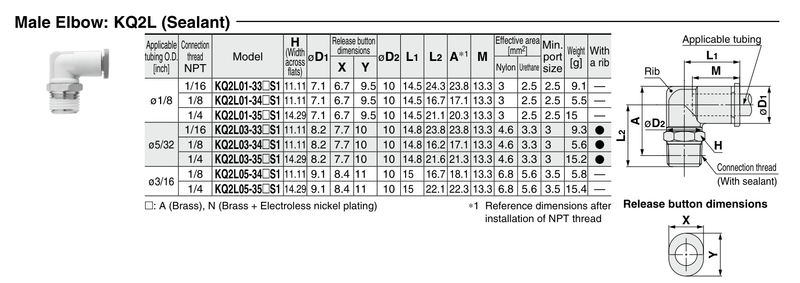

KQ2L01-34AS1 SMC KQ2 One-Touch Fitting - Male Elbow, 1/8 in OD Tube x 1/8 NPT Male

The SMC KQ2L01-34AS1 is a KQ2 series male elbow. It connects 1/8 in OD tubing to a 1/8 NPT male thread. Use to connect a tube to a female thread at a 90 degree angle.

Brass body. Thread sealant is pre-applied to the male thread. Oval type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
