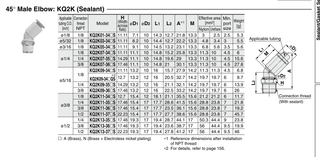

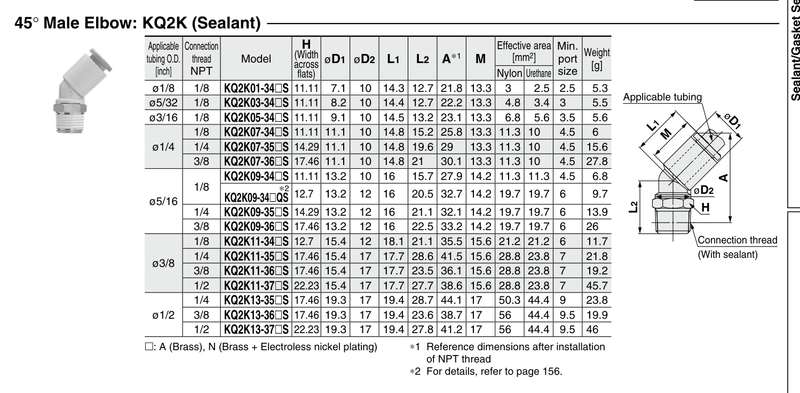

KQ2K11-37AS SMC KQ2 One-Touch Fitting - 45 Degree Male Elbow, 3/8 in OD Tube x 1/2 NPT Male

The SMC KQ2K11-37AS is a KQ2 series 45 degree male elbow. It connects 3/8 in OD tubing to a 1/2 NPT male thread. Use to connect a tube to a female thread at a 45 degree angle.

Brass body. Thread sealant is pre-applied to the male thread. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
