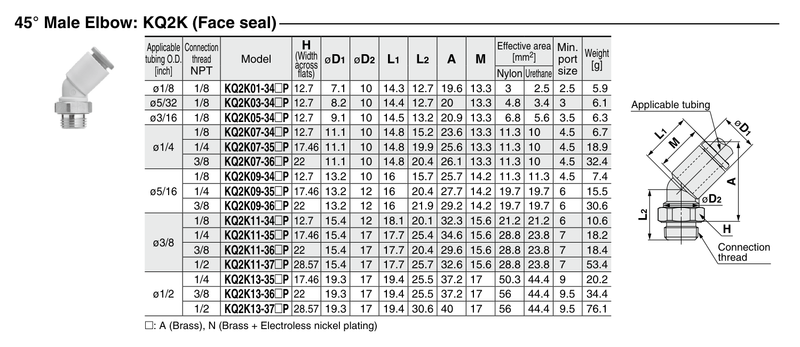

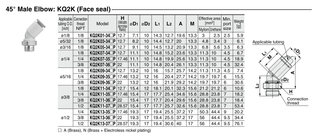

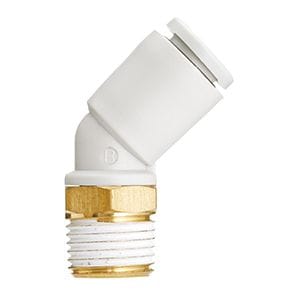

KQ2K07-34AP SMC KQ2 One-Touch Fitting - 45 Degree Male Elbow, 1/4 in OD Tube x 1/8 NPT Male

The SMC KQ2K07-34AP is a KQ2 series 45 degree male elbow. It connects 1/4 in OD tubing to a 1/8 NPT male thread. Use to connect a tube to a female thread at a 45 degree angle.

Brass body. Face seal type. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
