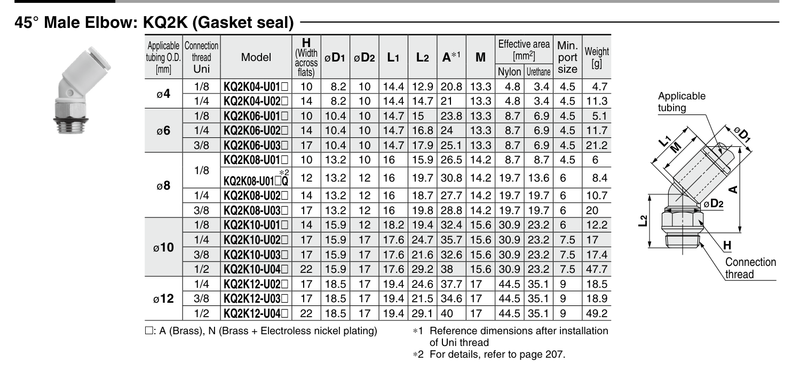

KQ2K06-U02N SMC KQ2 One-Touch Fitting - 45 Degree Male Elbow, 6 mm OD Tube x Uni 1/4 Male

The SMC KQ2K06-U02N is a KQ2 series 45 degree male elbow. It connects 6 mm OD tubing to a Uni 1/4 male thread. Use to connect a tube to a female thread at a 45 degree angle.

The Uni thread installs into Rc, G, NPT and NPTF female ports, so one part covers all four. It seals on a captive gasket that seats against the chamfer at the mouth of the port rather than on the thread flanks, so the mating port must present a flat or chamfered face at the thread entry. No thread sealant is required. Replacement gaskets are ordered separately as KQG.

Nickel-plated brass body. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
