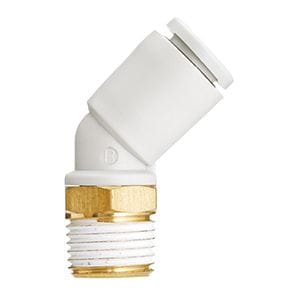

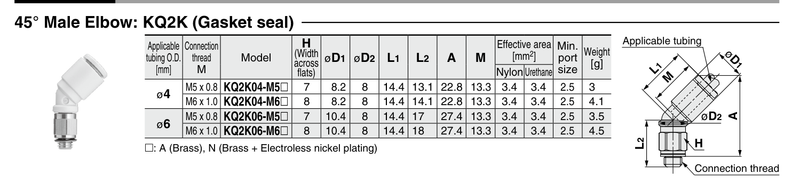

KQ2K06-M5A SMC KQ2 One-Touch Fitting - 45 Degree Male Elbow, 6 mm OD Tube x M5 Male

The SMC KQ2K06-M5A is a KQ2 series 45 degree male elbow. It connects 6 mm OD tubing to an M5 x 0.8 male thread. Use to connect a tube to a female thread at a 45 degree angle.

Brass body. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
