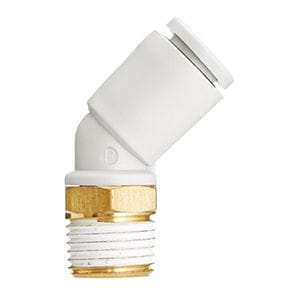

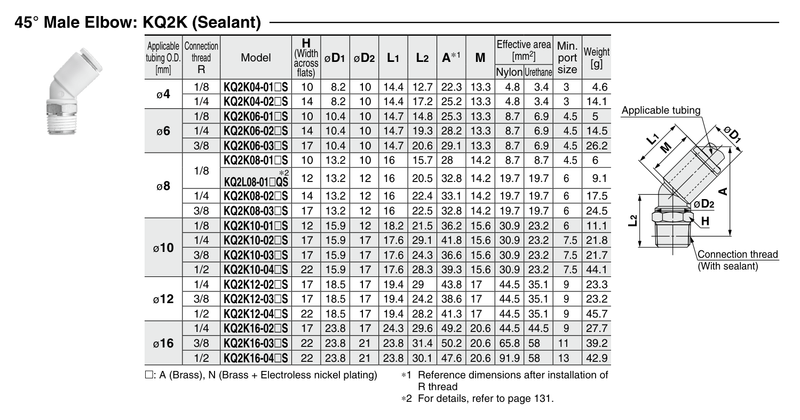

KQ2K06-01NS SMC KQ2 One-Touch Fitting - 45 Degree Male Elbow, 6 mm OD Tube x R1/8 Male

The SMC KQ2K06-01NS is a KQ2 series 45 degree male elbow. It connects 6 mm OD tubing to an R1/8 male thread. Use to connect a tube to a female thread at a 45 degree angle.

Nickel-plated brass body. Thread sealant is pre-applied to the male thread. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
